Understanding Cast Iron Butterfly Valves

Cast iron butterfly valve is a popular choice for flow control due to their robust construction, versatility, and cost-effectiveness. These valves feature a circular disc that rotates on a central shaft, allowing for precise regulation of fluid flow. The use of cast iron in their manufacture provides exceptional strength and durability, making them well-suited for a variety of demanding environments.

The Advantages of GGG50 Butterfly Valves

TWT’s GGG50 cast iron eccentric butterfly valve offers a range of benefits that make them a preferred choice for numerous applications.

Exceptional Durability

The GGG50 grade cast iron used in the construction of these valves is highly resistant to corrosion, abrasion, and extreme temperatures. This ensures a long service life, even in challenging operating conditions.

Improved Flow Characteristics

The eccentric design of the GGG50 butterfly valve reduces flow turbulence and minimizes pressure drop, resulting in efficient and smooth fluid flow. This characteristic makes them ideal for applications where energy savings and optimal performance are paramount.

Compact and Space-Saving

The compact design of the GGG50 butterfly valve allows for easy installation in confined spaces, making it a practical choice for a wide range of applications where limited installation clearance is a concern.

Cost-Effective Solution

Compared to other valve types, TWT’s GGG50 cast iron eccentric butterfly valves offer a more cost-effective solution without compromising on quality or performance, making them an attractive option for budget-conscious projects.

Versatile Applications

The GGG50 butterfly valve’s versatility extends across various industries, from water treatment and HVAC systems to industrial processing and energy production.

Applications of GGG50 Eccentric Butterfly Valves

TWT’s GGG50 cast iron eccentric butterfly valves are suitable for a diverse range of applications, including:

Water Treatment and Distribution

The corrosion-resistant properties of the GGG50 cast iron make these valves an ideal choice for water treatment facilities, water mains, and distribution networks, ensuring reliable flow control and reduced maintenance requirements.

HVAC Systems

The compact design and efficient flow characteristics of the GGG50 butterfly valve make them well-suited for use in heating, ventilation, and air conditioning (HVAC) systems, where space constraints and energy efficiency are critical considerations.

Industrial Processing

In various industrial settings, such as chemical processing, mining, and oil and gas operations, the GGG50 eccentric butterfly valve provides robust flow control and can withstand harsh operating environments.

Power Generation

The GGG50 butterfly valve is a valuable component in power generation facilities, where it is used to regulate the flow of coolants, fuels, and other fluids essential for efficient and safe power production.

Why Choose TWT as Your Eccentric Butterfly Valve Partner?

As a leading eccentric butterfly valve manufacturer in China, TWT offers a comprehensive range of high-quality solutions, including the GGG50 cast iron eccentric butterfly valve. With a focus on innovation, quality, and customer satisfaction, TWT is committed to providing reliable and cost-effective products to the global market.

Competitive Factory Prices

TWT leverages its manufacturing expertise and economies of scale to offer eccentric butterfly valves at competitive factory prices, ensuring exceptional value for its customers.

Exceptional Quality

TWT’s eccentric butterfly valves are meticulously crafted using premium materials and undergo rigorous quality control measures, guaranteeing outstanding performance and durability.

Customization Options

TWT’s experts work closely with customers to understand their unique requirements and provide tailored eccentric butterfly valve solutions to meet their specific needs.

Reliable Delivery

TWT prioritizes timely and efficient delivery, ensuring that customers receive their orders promptly and without disruption to their operations.

Excellent Customer Support

TWT’s dedicated customer service team is readily available to provide technical assistance, answer inquiries, and offer guidance throughout the purchasing process.

TWT’s GGG50 cast iron eccentric butterfly valves offer a versatile and cost-effective solution for managing fluid flow across a wide range of applications. By leveraging the exceptional durability, efficient flow characteristics, and compact design of these valves, customers can unlock enhanced performance, energy savings, and long-term reliability in their operations. As a leading eccentric butterfly valve manufacturer in China, TWT is committed to delivering high-quality, innovative solutions that meet the evolving needs of the global market.

Unveiled: Why the GGG50 Butterfly Valve Stands Out as an Industry Favorite ?

Unveiled: Why the GGG50 Butterfly Valve Stands Out as an Industry Favorite ?

In fluid control systems, precision and efficiency are paramount. Butterfly valves, known for their versatility, ensure consistent flow management across various sectors. The GGG50, extended stem, and concentric disc butterfly valves stand out among their peers. To assist in your selection, an examination of their characteristics, uses, and distinctions is presented, tailored to your specific flow control requirements.

GGG50 Butterfly Valve: Precision in Performance

Crafted from high-grade ductile iron, the GGG50 butterfly valve is renowned for its robustness and corrosion resistance. Its design features a disc mounted on a central axis, allowing for precise fluid control. Employed across water networks, HVAC, and various industrial settings, the GGG50 valve excels in moderate pressure and temperature conditions. Chosen for its adaptability and longevity, it serves a spectrum of industrial applications.

Design and Operation

A GGG50 butterfly valve consists of a circular disc (the “butterfly”) mounted on a rotating shaft or stem, which is perpendicular to the flow path.  When the valve is open, the disc is rotated parallel to the flow, allowing fluid to pass through with minimal obstruction.  In the closed position, the disc is turned to a position perpendicular to the flow, effectively blocking it.  The disc tightly seals against a durable EPDM, NBR, or equivalent elastomer seat, guaranteeing leak-proof closure in the valve’s inactive state.

Compactness, lightweight design, swift operation, and reduced maintenance needs – attributes that render these valves highly preferable over alternative types.  Furthermore, they inherently offer bidirectional flow cessation, thus proving ideal for systems experiencing reversed flow directions.

Proper Usage of GGG50 Butterfly Valves

Installation

  • Installation directed by flow markings or instructions: Valve correctly oriented.
  • Misalignment stress prevented: Valve-to-pipe alignment kept proper to safeguard valve body and seals.
  • Valve support provided sufficiently: Strain on valve-to-pipe joint minimized, seating surface integrity maintained, especially for larger valves.
  • Flange connections: Use appropriate gaskets, bolts, and torque values in accordance with the valve and pipeline specifications.

Operation

  • Manual operation: Depending on valve design, it’s rotated clockwise or counterclockwise for valve opening or closing.   Excessive force is prohibited;   leverage tools are only used when specifically suggested by the manufacturer.
  • Valve operation through actuation: When fitted with an electric, pneumatic, or hydraulic actuator, the valve is operated by the control system following manufacturers’ guidelines for both actuator and valve.

Extension Stem Butterfly Valve: Accessible Control at Your Fingertips

Extension Stem Butterfly Valve, a specialized variant of the conventional butterfly valve, is designed with an elongated stem that extends beyond the standard length, offering unique advantages and distinctive selling points for specific applications where accessibility, remote operation, or space constraints pose challenges.  This innovative valve configuration combines the versatility and reliability of traditional butterfly valves with additional features tailored to meet the needs of complex or unconventional installations.

Product Description

An Extension Stem Butterfly Valve incorporates all the fundamental components of a standard butterfly valve, including a resilient-seated or metal-seated disc, a robust valve body, and a sealing mechanism.  However, the distinguishing feature lies in the extended stem, which connects the valve disc to the actuation mechanism, whether manual (handwheel, gearbox) or automated (electric, pneumatic, or hydraulic actuator).  The extended stem length can vary significantly, ranging from a few inches to several feet, depending on the application requirements.

Extension Stem Butterfly Valve

What services do customers get when they purchase Extension Stem Butterfly Valve ?

  • Stem lengths are customizable to suit varied space needs and installation setups, guaranteeing a precise fit for every unique application.
  • Compatibility with manual, electric, pneumatic, or hydraulic actuation is provided, thus facilitating flexible control options and seamless integration into existing automation systems.
  • Safety Measures Enhanced: Easy access and remote operation capabilities are enabled, passively enhancing operator safety in challenging or restricted environments, thus reducing the need for hazardous interventions to a considerable extent.
  • Space Efficiency Improved: The valve body’s detachment from the actuation mechanism is a solution that passively optimizes space usage, effectively eliminating any potential interferences with surrounding structures and simplifying system layouts.
  • Maintain stable performance: The reliability of the standard butterfly valve has been retained.
  • Flow control efficiency is not reduced: Fluid control efficiency is effectively ensured.
  • Fast response times are set to be guaranteed.
  • Durability meets demanding requirements:Even in harsh applications, long service life is achieved.

Concentric Disc Butterfly Valve: Precision Engineering for Optimal Performance

The concentric disc butterfly valve is characterized by its innovative design, featuring a concentrically mounted disc that ensures precise flow control and tight shut-off capabilities. This design minimizes turbulence and pressure drop across the valve, enhancing efficiency and reducing energy consumption. Ideal for applications requiring precise flow modulation and leak-free performance, the concentric disc butterfly valve is commonly used in oil and gas pipelines, power generation plants, and pharmaceutical manufacturing facilities.

Differences and Considerations:

  1. Material Composition: While all three valves offer robust performance, the GGG50 butterfly valve is specifically constructed from ductile iron with a GGG50 material designation, providing enhanced corrosion resistance.
  2. Functionality: The extension stem butterfly valve offers extended reach for remote operation, making it suitable for applications where accessibility is a concern. In contrast, the concentric disc butterfly valve prioritizes precise flow control and tight shut-off capabilities, ideal for applications demanding high performance and efficiency.
  3. Applications: Each valve variant caters to specific industry requirements. The GGG50 butterfly valve finds utility in applications with moderate pressure and temperature conditions, while the extension stem butterfly valve excels in situations where remote operation is necessary. The concentric disc butterfly valve is best suited for applications requiring precise flow modulation and leak-free performance.

GGG50, extended stem, and concentric disc butterfly valves offer unique benefits for fluid management. Detailed analysis of these valves reveals distinct functional disparities. When matched with particular system demands, the ideal valve is selected, enhancing system efficiency and performance.

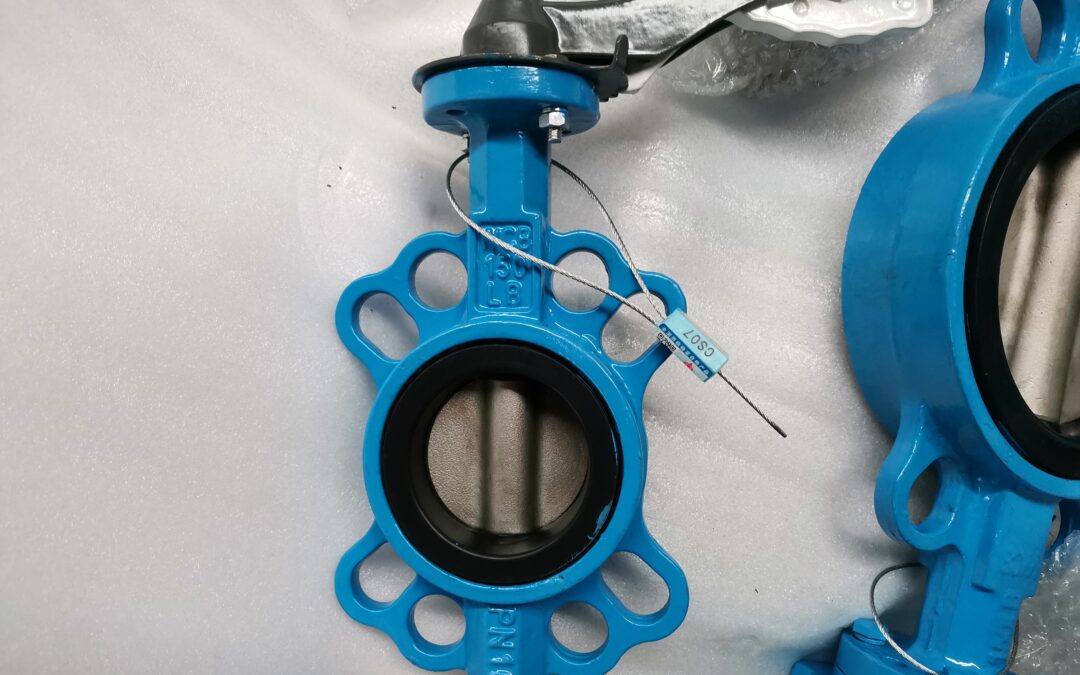

Efficiency and Functionality of Butterfly Valves: GGG50, Triple Eccentric, and Center Line Varieties

Efficiency and Functionality of Butterfly Valves: GGG50, Triple Eccentric, and Center Line Varieties

Butterfly valves are widely used in various industries for their efficient flow control capabilities. They offer a compact design, low pressure drop, and quick operation, making them a popular choice for both on/off and throttling applications. In this article, we will explore three types of butterfly valves: GGG50 butterfly valve, triple eccentric butterfly valve, and center line butterfly valve. We will discuss their unique features, benefits, and applications, shedding light on their importance in modern industrial processes.

GGG50 butterfly valve

Features and Applications of GGG50 Butterfly Valve

GGG50 refers to a specific grade of ductile iron, also known as nodular cast iron, that is commonly used in the manufacturing of butterfly valves. The GGG50 butterfly valve is known for its durability, corrosion resistance, and excellent mechanical properties. Here are some of its key features and applications:

Features:

  1. Durable Construction: The GGG50 butterfly valve is made from high-quality ductile iron, which provides exceptional strength and resistance to wear and tear.
  2. Corrosion Resistance: The valve is coated or lined with materials such as epoxy or rubber to prevent corrosion, making it suitable for use in various environments.
  3. Excellent Flow Control: The butterfly valve design allows for precise flow control and regulation, providing efficient performance in fluid handling systems.
  4. Easy Operation: The valve features a simple and easy-to-use lever or gear mechanism for opening and closing, allowing for quick adjustments.

Applications:

  1. Water Supply and Distribution: GGG50 butterfly valves are commonly used in water treatment plants, pump stations, and water distribution networks for regulating water flow.
  2. HVAC Systems: These valves are utilized in heating, ventilation, and air conditioning (HVAC) systems to control the flow of air or water.
  3. Industrial Applications: GGG50 butterfly valves find application in various industrial processes, including chemical processing, power generation, and wastewater treatment.
  4. Fire Protection Systems: They are also employed in fire protection systems, such as sprinkler systems, to control water flow during emergencies.

Triple Eccentric Butterfly Valve: Engineering Excellence and Functionality

The triple eccentric butterfly valve is designed to provide a tight and reliable seal, even in demanding conditions. Unlike traditional butterfly valves, the triple eccentric design incorporates three offsets: the first offset is the shaft centerline, the second offset is the disc centerline, and the third offset is the sealing surface. This unique design reduces friction and wear, resulting in improved sealing performance and extended valve life. Triple eccentric butterfly valves are commonly used in industries such as oil and gas, petrochemical, and power generation, where tight shut-off and high-performance requirements are critical.

Center Line Butterfly Valve: Versatile Design and Operational Efficiency

The center line butterfly valve, also known as a resilient-seated butterfly valve, is characterized by its simple and cost-effective design. It features a disc that rotates around a central axis, providing a tight seal against the valve seat. Center line butterfly valves are widely used in water distribution systems, wastewater treatment plants, and general industrial applications. They offer excellent flow control capabilities, low pressure drop, and easy maintenance. These valves are suitable for both on/off and throttling applications, making them versatile and widely adopted.

Application of Center Line Butterfly Valve

Center line butterfly valves are widely used in various industries due to their unique design and functionality. Here are some common applications of center line butterfly valves:

  • Water and Wastewater Treatment: Center line butterfly valves are extensively used in water and wastewater treatment plants for regulating the flow of water, slurry, and other fluids. They are employed in processes such as filtration, sedimentation, and chemical dosing.
  • HVAC Systems: These valves play a crucial role in heating, ventilation, and air conditioning (HVAC) systems. They help control the flow of air and water in cooling towers, chillers, and other HVAC equipment, ensuring efficient temperature regulation and energy conservation.
  • Chemical and Petrochemical Industry: In chemical and petrochemical plants, center line butterfly valves are utilized for controlling the flow of various chemicals, acids, solvents, and corrosive substances. Their corrosion-resistant materials make them suitable for handling aggressive media.

Benefits :

  • Efficient Flow Control: Butterfly valves, including GGG50, triple eccentric, and center line varieties, offer excellent flow control capabilities with low pressure drop, allowing for efficient operation and reduced energy consumption.
  • Quick Operation: Butterfly valves can be operated quickly, enabling rapid response to changing process conditions.
  • Compact Design: The compact and lightweight design of butterfly valves makes them easy to install and maintain, saving space and reducing installation costs.
  • Cost-Effective: Butterfly valves are often more cost-effective compared to other valve types, making them a preferred choice for budget-conscious projects.
  • Versatility: These valves can handle a wide range of fluids, including liquids, gases, and slurries, making them suitable for diverse applications in various industries.

GGG50 butterfly valves, triple eccentric butterfly valves, and center line butterfly valves offer efficient and reliable flow control solutions for a wide range of industrial applications. Their unique features, such as high strength, tight sealing, and quick operation, make them indispensable in modern processes. By understanding the benefits and applications of these butterfly valves, engineers and professionals can make informed decisions when selecting valves for their specific requirements, ensuring optimal performance, efficiency, and cost-effectiveness.

Unveiled: Why the GGG50 Butterfly Valve Stands Out as an Industry Favorite ?

Exploring the Efficiency and Versatility of Double Eccentric Butterfly Valves

Double eccentric butterfly valves offer exceptional performance, efficiency, and control in fluid flow applications. With their unique design, they provide reliable sealing, reduced torque requirements, and precise flow control. These valves find widespread use in diverse industries and applications, including oil and gas, water treatment, power generation, and HVAC systems. While similar in some aspects, double eccentric butterfly valves and LT butterfly valve have distinct purposes and features.

Understanding Double Eccentric Butterfly Valves

Double eccentric butterfly valve China are a type of quarter-turn valve that features a disc or “butterfly” that is offset from the valve’s centerline. This design allows for a “double eccentric” movement, meaning the disc rotates and moves away from the valve seat in two directions: axially and rotationally. By employing this unique configuration, double eccentric butterfly valves offer exceptional sealing capabilities, reduced friction, and improved control over fluid flow.

The construction of a double eccentric butterfly valve typically includes a valve body, a disc, a stem, and a seat. The valve body is commonly made of materials such as ductile iron, stainless steel, or carbon steel, providing strength and durability. The disc is often made of materials like stainless steel or cast iron, and it is connected to the stem, which transfers the rotational motion to the disc. The seat, usually made of elastomers or soft metal, ensures a tight shut-off when the valve is closed.

Functionality and Benefits

Double eccentric butterfly valves offer numerous advantages due to their unique design and functionality. The double eccentric movement of the disc reduces wear and friction, resulting in lower torque requirements for operation. This characteristic makes them suitable for automated control systems, reducing energy consumption and extending the life of actuation mechanisms. The reduced torque requirement also allows for smaller and more cost-effective actuators.
Another significant benefit of double eccentric butterfly valves is their excellent sealing performance. The offset disc design ensures a tight shut-off, minimizing leakage even at high pressures. This feature makes them ideal for applications that demand reliable and efficient sealing, such as oil and gas, chemical processing, water treatment, and HVAC systems.

Furthermore, double eccentric butterfly valves offer quick and easy operation, allowing for fast opening and closing times. Their quarter-turn action enables efficient flow control, making them suitable for applications that require frequent adjustments or throttling.

Differentiating Double Eccentric and LT Butterfly Valves

While double eccentric butterfly valves and low torque (LT) butterfly valves share some characteristics, they are distinct in their design and functionality. LT butterfly valves, as the name suggests, are specifically designed to minimize torque requirements during operation. They achieve this by utilizing various features, such as low-friction materials, optimized disc design, and reduced operating clearances. The primary goal of LT butterfly valves is to minimize energy consumption and improve overall operational efficiency.

On the other hand, double eccentric butterfly valves focus on providing exceptional sealing capabilities and precise flow control. While they may also offer reduced torque requirements compared to other valve types, torque reduction is not their primary purpose. Double eccentric butterfly valves excel in applications where tight shut-off and reliable sealing are critical, and where precise control over fluid flow is required.

Applications and Industry Usage

Double eccentric butterfly valves find extensive usage in a wide range of industries and applications. Their versatility makes them suitable for both high-pressure and low-pressure systems. They are commonly employed in industries such as oil and gas, petrochemical, water and wastewater treatment, power generation, pulp and paper, and HVAC systems.

In the oil and gas industry, double eccentric butterfly valves are used for pipeline isolation, tank farm applications, and offshore platforms. They are also favored in water treatment plants for regulating the flow of water and controlling water distribution. Additionally, double eccentric butterfly valves are utilized in power generation facilities for controlling steam, cooling water, and various process fluids.
